  Products and Services
Lighting Solution

Solar Road-Stud, Solar Brick & Glassblock

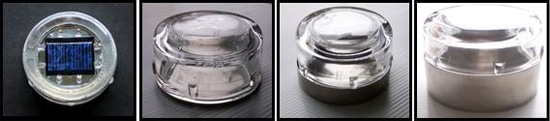

Solar Road Stud AP-LF023

Road Studm AP-LF023

Road Studm AP-LF023

Applications:

  1. Curve Roadway
  2. Highway Exit
  3. Partition Area
  4. Middle of Road

Specifications:

Item Description
Casing Material Material Tempered Glass, Stainless
Solar Cell Type Multi-Crystalline Si
Size 50mm x 40mm
Voltage/Current 5V/30mA
Battery   4.2V/700mA
Light Colour Yellow/Red
LED Quantity 4/6/8 Pcs
Flash Type Constant/Flashing
Product Size   Ø106 x (H) 45mm
Ø106 x (H) 60mm
Ø106 x (H) 80mm
Working Temp   -20°C ~ 85°C
Weight Load   25~26 Ton

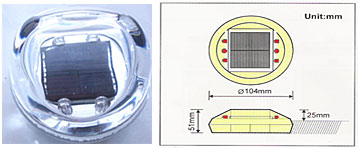

(A-2) Solar Road Stud

Road Stud

Applications:

  1. Curve Roadway
  2. Highway Exit
  3. Partition Area
  4. Middle of Road
  5. T-intersection

Specifications:

Item AP-LF021 AP-LF022
Casing Material Material Tempered Glass, Stainless Tempered Glass, Stainless
Glass Mate/Gloss Mate/Gloss
Solar Cell Type Multi-Crystalline Si Multi-Crystalline Si
Size 50mm x 40mm 50mm x 40mm
Voltage/Current 5V/30mA 5V/30mA
Battery   4.2V/700mA 4.2V/700mA
Light Color Yellow/Red Yellow/Red
LED Quantity 4 Pcs 4 Pcs
Flash Type Constant Flashing
Product Size   Ø104 x 51(H)mm Ø104 x 51(H)mm
Working Temp   -20°C ~ 85°C -20°C ~ 85°C
Weight Load   2,500kgf 2,500kgf

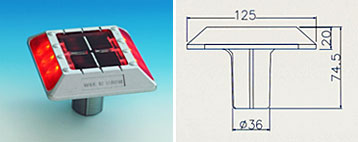

(A-3) Solar Road Stud AP-SF025

Road Stud AP-SF025

Applications:

  1. Curve Roadway
  2. Highway Exit
  3. Partition Area
  4. Middle of the Road
  5. T-intersection

Specifications:

Item Description
Solar Cell Type Single-crystal silicon
Voltage/Current 3V/130mA
Battery Material Ni-cd rechargeable battery
Voltage/Current 1.2V/1700mA
LED Color Yellow/Red/Green/Blue
Quantities of LED 6 pcs
Flash rate 90 times/min (±20%)
Weight Load   25~26 Ton

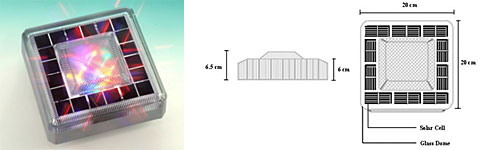

(B) Solar Diamond Brick

Solar Diamond Brick

This unique Solar Diamond brick is suitable for all kind of landscapes and architectures, either for large-scale public area or private space:

  1. Parks, Riverside, Sea-shore
  2. Villa, Penthouse, gardens, front and back-yards
  3. Residential area, Resorts, Theaters, Swimming Pool Pond
  4. Outdoor decorations, Exhibition-hall, Stadium
  5. Seasonal Occasion celebrating decoration (Ex. under Christmas tree)
  6. Hotel entrance, Café, KTV, Pub

Specifications:

Item Description
Casing Material   Tempered Glass, Aluminum
Solar Cell Type Multi-Crystalline Si
Voltage/Current 4.8V/300mA
Battery   4.2V/4000mA
Light Color Yellow/Red/Blue/Green/White/Mix
LED Quantity 12 Pcs
Flash Type Constant/Continuous Changing
Product Size   203(L) x 203(D) x 70(H) mm
Working Temp   -20°C ~ 85°C
Weight Load   2,500kgf

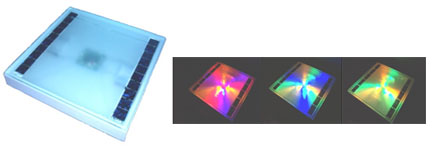

(C) Solar Glassblock

Solar Glassblock

This unique Solar diamond Glassblock is suitable for all kind of landscapes and architectures, either for large-scale public area or private space:

  1. Parks, Riverside, Sea-shore
  2. Villa, Penthouse, gardens, front and back-yards
  3. Residential area, Resorts, Theaters, Swimming Pool Pond
  4. Outdoor decorations, Exhibition-hall, Stadium
  5. Seasonal Occasion celebrating decoration (Ex. under Christmas tree)
  6. Hotel entrance, Café, KTV, Pub

Specifications:

Item Description
Casing Material   Tempered Glass, Aluminum
Solar Cell Type Multi-Crystalline Si
Voltage/Current 4.8V/300mA
Battery   4.2V/4000mA
Light Color Yellow/Red/Blue/Green/White/Mix
LED Quantity 12 Pcs
Flash Type Constant/Continuous Changing
Product Size   300(L) x 300(D) x 36(H) mm
Working Temp   -20°C ~ 85°C
Weight Load   2,500kgf
