T5-lightings

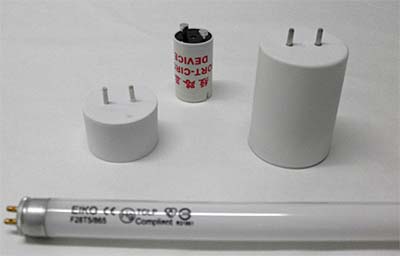

This is a T8-to-T5 direct conversion... without changing the original T8 lighting-fixture). This "3-in-1" T5-ballast does "NOT" need any additional or extra "Aluminum bar" bundle together with T5 light-tube. This type of ballast supports both 28W (1149mm) & 35W (1449mm) T5 solutions.
** We also have another type T5 digital ballast ("Parallel" circuit-design), which supports 1-to-1, 1-to-2, 1-to-3... upto 1 x 4pcs (T5 tubes) solutions —> for 14W, 21W, 28W and 35W.

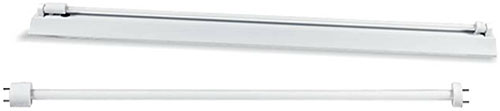

T5 Fluorescent Tube
- Qualified for the European and California USA environment requirement.
- Fluorescent powder are form (Japan-Asia Chemical) or Philips.
- Adopt the solid type Mercury to protect environment.
- Certificated by Taiwan Energy Saving Mark (efficacy is 15% better than the same grade product)
- Produced by the most advanced fully automatic facility.
T5 vs T8/T9 Comparisons:
| Items (Descriptions) | T9/T8 (20W) | T5 (14W) |
|
Light-tube power Numbers of lamp-tube (each set of light-tube) Ballast & inverter Each lamp-tube luminance (brightness) 4pcs lamp-tubes luminance (brightness) Input power (Each lighting set power consumption) Numbers of light-fixtures (Total) Total luminance (Each set luminance x Total light fixtures) Power consumption (Input power x Total light fixtures) 1-degree rating = 1,000W/1hr. Average usage (each day) Average power rating usage (consumption) each day Average usage (each year) Average power rating usage (each year) Power (energy) saving each year Energy saving (reduction) percentage |
20W 4pcs Linear (Transformer) 1,050 lm 4,200 lm 88W 25 sets 105,000 lm 2,200W 1,000W 12 hrs 26.4 deg. 300 days 7,920 deg. |
14W 4pcs Digital (Electronics) 1,250 lm 5,000 lm 61W 21 sets 105,000 lm 1,281W 1,000W 12 hrs 15.372 deg. 300 days 4,611.6 deg. 3,308.4 deg. 42% |
Electrical Ballast Invention Patent in USA
